Boolean Operations: The Set Theory Crucible (ℝ³ → ℤ³)

Boolean operations on solids represent the first computational barrier that demanded hardware acceleration. The regularization of set operations in 3D space requires solving:

$$
S_1 \otimes S_2 = \text{closure}(\text{interior}(S_1 \star S_2))
$$

$$ \Delta \mathbf{P}i = \mathbf{P}{i+1} - \mathbf{P}_i $$

Where $\otimes$ represents regularized union/intersection/difference, and $\star$ is the standard set operator. The conversion from continuous math to discrete implementations introduces topological challenges formalized by the Jordan-Brouwer separation theorem:

$$
\partial S \text{ partitions } \mathbb{R}^3 \text{ into } \text{int}(S), \text{ext}(S), \text{ and } \partial S
$$

This theorem underpins all solid modeling kernels but requires combinatorial explosion management when implemented. For two meshes with $n$ triangles each, the intermediate intersection curve calculation has complexity:

$$
\mathcal{O}(n^{2/3} \log n + k)
$$

where $k$ is the number of intersections (Shewchuk, 1999). This mathematical reality made early CAD systems computationally prohibitive without dedicated hardware.

Bézier & NURBS: The Parametric Revolution

Bézier Geometry (Bernstein Basis)

The parametric form of Bézier curves hides profound mathematical depth:

$$
\mathbf{B}(t) = \sum_{i=0}^n \underbrace{\binom{n}{i} t^i (1-t)^{n-i}}_{\text{Bernstein polynomial}} \mathbf{P}_i
$$

The derivative reveals its connection to differential geometry:

$$
\Delta \mathbf{P}i = \mathbf{P}{i+1} - \mathbf{P}_i
$$

$$
\mathbf{B}'(t) = n \sum_{i=0}^{n-1} \Delta \mathbf{P}i \cdot B{i,n-1}(t)
$$

Where $\Delta \mathbf{P}i = \mathbf{P}{i+1} - \mathbf{P}_i$. This structure enables parallel evaluation - a concept later exploited by GPU stream processors.

NURBS: Projective Geometry in Practice

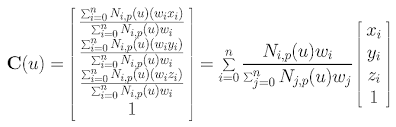

NURBS introduce weights $w_i$ and knot vectors $U$ through rational parameterization:

$$
\mathbf{C}(u) = \frac{\sum_{i=0}^n N_{i,p}(u) w_i \mathbf{P}i}{\sum{i=0}^n N_{i,p}(u) w_i}
$$

The B-spline basis functions $N_{i,p}$ follow recursive evaluation:

$$
N_{i,p}(u) = \frac{u - u_i}{u_{i+p} - u_i} N_{i,p-1}(u) + \frac{u_{i+p+1} - u}{u_{i+p+1} - u_{i+1}} N_{i+1,p-1}(u)
$$

This recursion depth leads to $\mathcal{O}(p^2)$ complexity per evaluation point - a key driver for early GPU fixed-function hardware.

While parametric representations offer powerful mathematical tools for surface design, real-world engineering models often require operations on discrete mesh representations. This necessity leads us to examine the sophisticated mathematics of mesh manipulation and implicit modeling.

Mathematics of Mesh Healing, Repair, and Implicit Models

Mesh Healing and Repair: Radial Basis Functions and Parametric Mapping

Mesh healing represents a critical computational challenge in MCAD systems, addressing real-world model defects including holes, non-manifold edges, and self-intersections. The mathematical foundations of mesh repair bridge differential geometry, numerical analysis, and topology.

RBF Surface Interpolation

The Radial Basis Function approach provides a powerful mathematical framework for reconstructing surfaces from damaged meshes:

$$
s(\mathbf{x}) = \sum_{i=1}^N \lambda_i , \phi(|\mathbf{x} - \mathbf{x}_i|) + p(\mathbf{x})
$$

Where:

• $\phi(r)$ represents the radial basis function (commonly Gaussian or thin-plate spline)
• $\lambda_i$ are weights determined by solving a linear system
• $p(\mathbf{x})$ is a polynomial term ensuring affine invariance

This meshless representation enables solving the Laplace equation on the surface:

$$
\Delta u = 0 \quad \text{on the surface}
$$

The solution to this PDE creates harmonic maps that preserve geometric features while repairing topological inconsistencies - a mathematical approach that parallels the regularization techniques in modern neural networks.

Parametric Remeshing

The mathematical elegance of surface parameterization transforms mesh repair into a 2D problem:

$$
f: \mathcal{M} \subset \mathbb{R}^3 \rightarrow \Omega \subset \mathbb{R}^2
$$

This mapping minimizes distortion through energy functionals:

$$
E(f) = \int_{\mathcal{M}} |\nabla f|^2 dA
$$

The resulting parameterization enables robust triangulation algorithms that would be combinatorially intractable in 3D space - demonstrating how dimension reduction (a concept central to modern AI) originated in graphics mathematics.

Implicit Models and Meshes

Implicit modeling represents a paradigm shift from explicit mesh representation, defining surfaces as level sets:

$$
F(x, y, z) = 0
$$

This representation creates a complete partition of 3D space:

• $F(x, y, z) < 0$ (interior)
• $F(x, y, z) = 0$ (surface)
• $F(x, y, z) > 0$ (exterior)

Boolean Operations on Implicit Models

The mathematical elegance of implicit representations transforms complex Boolean operations into simple algebraic expressions:

$$
F_{A \cup B}(x, y, z) = \min(F_A(x, y, z), F_B(x, y, z))
$$

$$
F_{A \cap B}(x, y, z) = \max(F_A(x, y, z), F_B(x, y, z))
$$

$$
F_{A \setminus B}(x, y, z) = \max(F_A(x, y, z), -F_B(x, y, z))
$$

This R-function approach avoids the combinatorial explosion of mesh-based Boolean operations, providing mathematical robustness that directly influenced modern neural implicit representations.

Distance Fields and Level Sets

Signed distance fields (SDFs) represent a specialized implicit form:

$$
F(x, y, z) = \pm \min_{\mathbf{p} \in \partial \Omega} |\mathbf{x} - \mathbf{p}|
$$

The evolution of level set methods through the Hamilton-Jacobi equation:

$$
\frac{\partial \phi}{\partial t} + H(\nabla \phi) = 0
$$

This mathematical framework enables topology-changing operations that would be prohibitively complex with explicit meshes - a concept that later influenced neural network architectures for 3D shape generation.

Mesh Generation from Implicit Functions

The Marching Cubes algorithm bridges implicit and explicit representations through isosurface extraction:

$$
{\mathbf{x} \in \mathbb{R}^3 : F(\mathbf{x}) = c}
$$

This algorithm samples the scalar field on a regular grid and constructs a piecewise linear approximation of the isosurface - a discretization process mathematically analogous to the quantization operations in modern neural networks.

Having explored the mathematics of both parametric and implicit representations, we now turn to the fundamental transformations that allow these geometric entities to be positioned, oriented, and projected in three-dimensional space.

The Matrix Revolution: Homogeneous Coordinates

The 4D projective space formulation enables efficient transformations:

$$

\begin{bmatrix}
x' \ y' \ z' \ w'
\end{bmatrix}

\begin{bmatrix}
a & b & c & t_x \
d & e & f & t_y \
g & h & i & t_z \
0 & 0 & 0 & 1
\end{bmatrix}
\begin{bmatrix}
x \ y \ z \ 1
\end{bmatrix}
$$

But the true power emerges in composition:

$$
\mathbf{M}{\text{total}} = \mathbf{M}{\text{proj}} \cdot \mathbf{M}{\text{view}} \cdot \mathbf{M}{\text{model}}
$$

Matrix concatenation follows the Thompson group structure, requiring 4x4 matrix multiplication at 60+ FPS - a task impossible for 1990s CPUs but ideal for GPU parallelization.

Rendering Equations: Light as Integrals

The path from Phong shading to ray tracing rests on solving the rendering equation (Kajiya, 1986):

$$
L_o(\mathbf{x}, \omega_o) = L_e(\mathbf{x}, \omega_o) + \int_{\Omega} f_r(\omega_i, \omega_o) L_i(\mathbf{x}, \omega_i) (\mathbf{n} \cdot \omega_i) d\omega_i
$$

Monte Carlo integration transforms this into:

$$
L_o \approx \frac{1}{N} \sum_{k=1}^N \frac{f_r L_i (\mathbf{n} \cdot \omega_{i_k})}{p(\omega_{i_k})}
$$

With variance reduction requiring importance sampling:

$$
p(\omega_i) \propto f_r(\omega_i, \omega_o) (\mathbf{n} \cdot \omega_i)
$$

This mathematical structure directly inspired importance sampling in variational autoencoders and modern denoising techniques.

GPU Architecture: Mathematics Made Silicon

The computational patterns forced GPU designers to create:

1. SIMT Architecture: Single Instruction Multiple Thread
2. Hierarchical Memory: Registers → Shared → L1/L2 → Global
3. Tensor Cores: Mixed-precision matrix units

Compare graphics and AI workloads:

Operation	Graphics	AI
Matrix Multiply	View/projection transforms	Neural network layers
Reduction	Z-buffer depth test	Loss calculation
Filtering	Texture sampling	Attention mechanisms

The AI Symbiosis: From Polygons to Parameters

The mathematical throughline becomes clear:

Graphics Kernel	AI Operation
Vertex shader matrix transforms	Neural network layer $Wx + b$
Texture filtering	Convolutional neural networks
Marching cubes isosurfacing	Decision boundary visualization
Monte Carlo ray tracing	Bayesian neural networks
Photon mapping	Particle filter methods

The 2012 AlexNet breakthrough used 2.9 million CUDA cores (NVIDIA GTX 580) - hardware originally designed for graphics math.

Quantum Connections: Hilbert Space Meets Vertex Shaders

The mathematical tools developed for graphics find new life in quantum computing:

1. Qubit State Visualization: Uses Marching Cubes algorithm
2. Quantum Circuit Simulation: Leverages sparse matrix ops from FEM
3. Quantum Machine Learning: Uses GPU-accelerated tensor networks

The density matrix formulation:

$$
\rho = \sum_i p_i |\psi_i\rangle \langle\psi_i|
$$

Requires the same Hermitian inner product calculations as BRDF lobe sampling.

Conclusion: The Unbroken Mathematical Chain

From the Boolean algebra of CSG to the tensor cores in modern GPUs, the mathematical demands of computer graphics created:

1. Hardware Architectures for massive parallelism
2. Numerical Libraries for matrix/tensor operations
3. Algorithmic Paradigms for approximate integration

These became the foundation for:

• Transformer models ($\mathcal{O}(n^2)$ attention matrices)
• Physics-informed neural networks (PDE discretization)
• Quantum computing simulations (Kronecker products)

The $500 billion AI industry rests on mathematical frameworks forged in the CAD labs of the 1970s. Every forward pass in a neural network, every quantum circuit simulation, and every photorealistic render traces its lineage to these fundamental graphics mathematics - proving that the virtual worlds we built to design cars and airplanes ultimately became the blueprint for machine intelligence.
